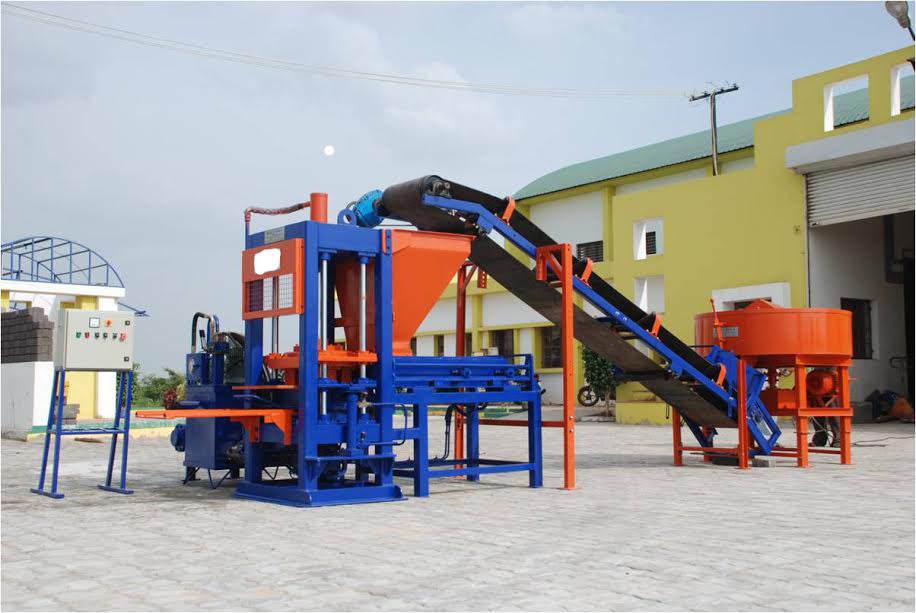

Model no. pnb 016 a

Roll over image to zoom in

Technical Specification

Model PNB-016A (Special design for high production color pavers with stacker system)
Maximum Vibro Pressure Tonnage 10 to 12 MT (415 Volts advance hydraulic & German Technology Vibro system for super strength of flyash/concrete brick blocks)
Power Required 34 HP
Manufacturing Capacity Coloured Paver Blocks: 10/12/16 pcs (Acc. to size) in one operation
Bricks: 35000-38000 per shift
Facility Materials Automatically Double Feeder Facilitates for production of Coloured Paver Blocks
Discharge of Material Discharge of finish product Through Bering Conveyor for Faster Production
Pallet Feeder Pallet Feeder back side of machine
Color Feeding Specially make color feeder for paver block top layer
Oil Tank Capacity 300 Litres (68 No. Hydraulic Oil)
Conveyor Belt 24 Feet x 18 inch, 2HP
Paver Stacker Automatic green bricks stacking on hydraulic trolley for shift green paver one to another place
Hydraulic Pan Mixer Machine Heavy Roller & Blades with hydraulic hopper, 100Kg Mixing Capacity or twin shaft mixer with fully automatic batching system (optional)
15 HP Motor & Heavy duty pelentery gearbox.
Double Cone Type Colour Mixer 3 HP, 3 Phase Electric Motor

Note: This machine is specially design with extra viberation force to produce dry/wet pavers bricks 50mm tiles & blocks.
