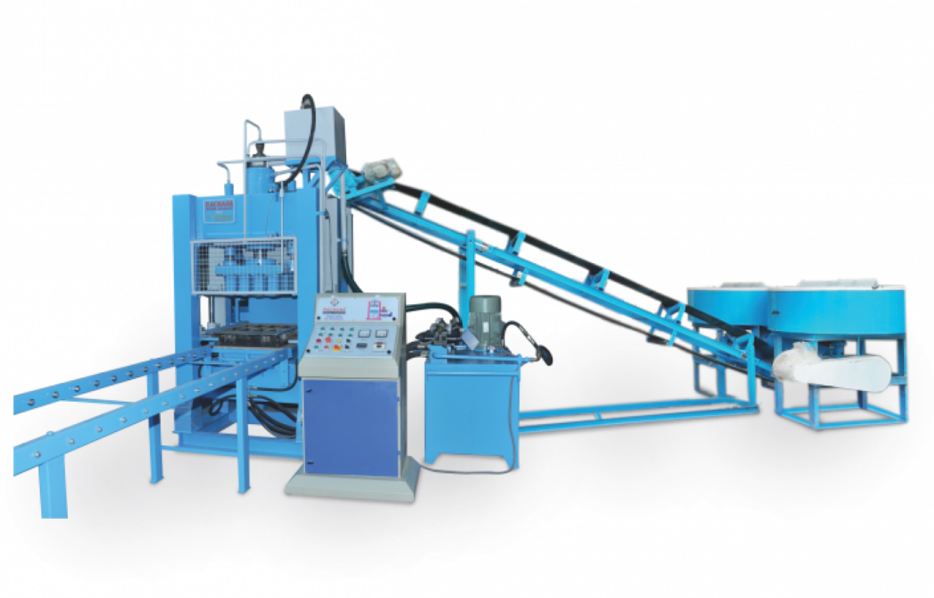

Model no. pnb 012 B

Roll over image to zoom in

Technical Specification

Model PNB-012B
Maximum High Pressure Tonnage 70 to 90 (with single pan mixer or vibro pressure)
Power Required 18 HP
Manufacturing Capacity Fly Ash Bricks: 8 pcs in one operation
Facility Materials Automatically Single Feeder Facilitates for production of Fly Ash Bricks & Blocks
Discharge of Material Discharge of finish product Through Bering Conveyor for Faster Production
Pallet Feeder Pallet Feeder back side of machine
Production in shift of 8 hours Fly Ash Bricks & Blocks
Brick Size 230 x 110 x 75mm 13000 Pcs
230 x 150 x 75mm 1000 Pcs
400 x 150 x 200mm 4500 Pcs
Concrete Paver Blocks Single Layer Approx 8000 Pcs (as per Design)
Oil Tank Capacity 300 Litres (68 No. Hydraulic Oil) Press Machine
Conveyor Belt 18 Feet x 18 inch, 2HP
Pan Mixer Machine Heavy Roller & Blades, 500kg Mixing Capacity, 7.5 HP Motor & Heavy Gear Box
