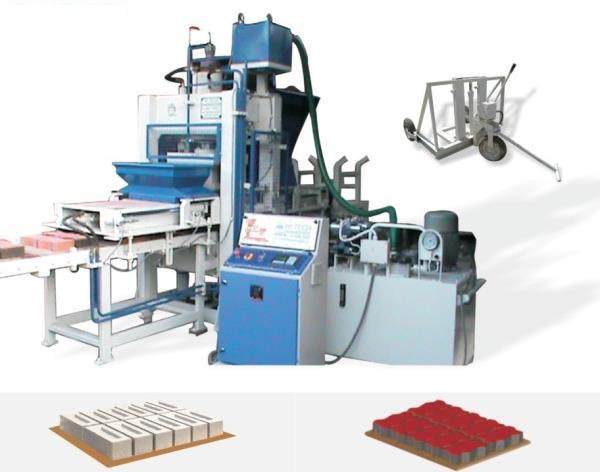

Model no. pnb 011 A (Fully automatic)

Roll over image to zoom in

Technical Specification

Model PNB-011A (Fully Automatic)
Maximum High Pressure Tonnage 70 to 90
Power Required 18 HP
Manufacturing Capacity Fly Ash Bricks: 6 pcs in one operation
Facility Materials Automatically Single Feeder Facilitates for production of Fly Ash Bricks & Blocks
Discharge of Material Discharge of finish product Through Bering Conveyor for Faster Production
Pallet Feeder Pallet Feeder back side of machine
Production in shift of 8 hours Fly Ash Bricks & Blocks
Brick Size 230 x 110 x 75mm 7000 Pcs
230 x 150 x 75mm 5500 Pcs
400 x 150 x 200mm 2500 Pcs
Concrete Paver Blocks Single Layer Approx 4000 Pcs (as per Design)
Oil Tank Capacity 300 Litres (68 No. Hydraulic Oil) Press Machine
Conveyor Belt 14 Feet x 18 inch, 1HP
Pan Mixer Machine Heavy Roller 7 Blades, 500kg Mixing Capacity, 7.5 HP Motor & Heavy Gear Box
