Model no. pnb 012 A

Roll over image to zoom in

Technical Specification

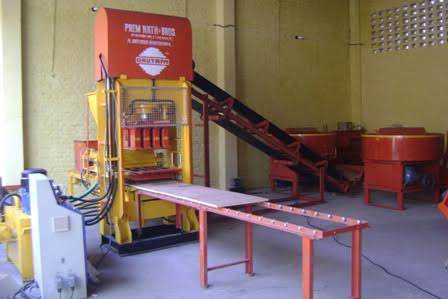

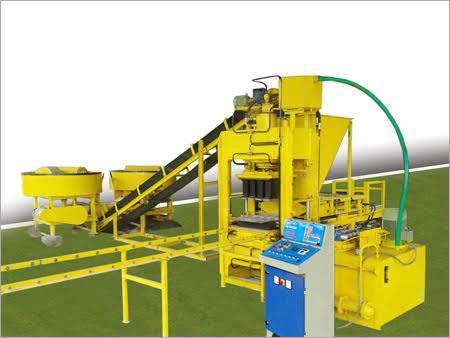

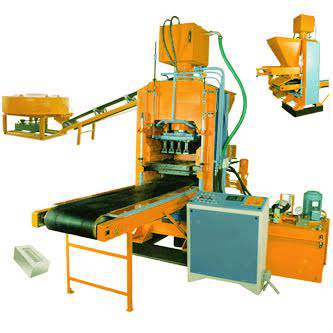

Model PNB-012A (High Pressure with Double Pan Mixer)
Maximum High Pressure Tonnage 100 to 120 (415 Volts high pressure with advance hydraulic sytem for super strength of flyash/concrete brick blocks Zero Maintanance Plant))
Power Required 28 HP
Manufacturing Capacity Fly Ash Bricks: 8 pcs in one operation
Facility Materials Automatically Single Feeder Facilitates for production of Fly Ash Bricks & Blocks
Discharge of Material Discharge of finish product Through Bering Conveyor for Faster Production
Pallet Feeder Pallet Feeder back side of machine
Production in shift of 8 hours Fly Ash Bricks & Blocks
Brick Size 230 x 110 x 75mm 13000-16000 Pcs
230 x 150 x 75mm 10500-12500 Pcs
400 x 200 x 200mm 4000 Pcs
Concrete Paver Blocks Single Layer Approx 5000 Pcs (as per Design)
Oil Tank Capacity 400 Litres (68 No. Hydraulic Oil) Press Machine
Conveyor Belt 20 Feet x 18 inch, 2HP
Pan Mixer Machine Heavy Roller & Blades, 500kg Mixing Capacity, 7.5 HP Motor & Heavy Gear Box
