Model no. pnb 014 a

Roll over image to zoom in

Technical Specification

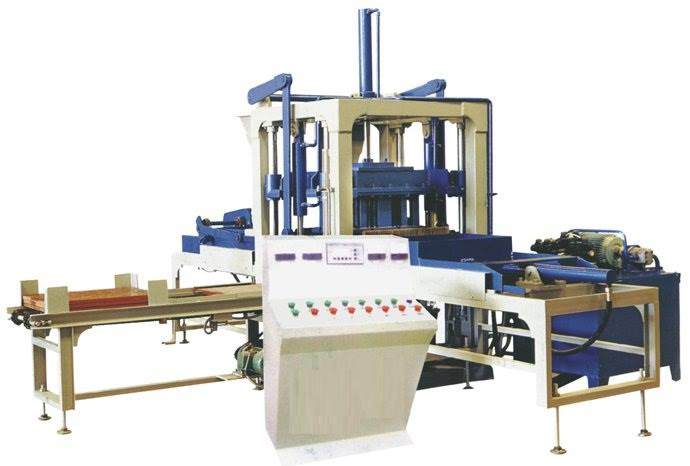

Model PNB-014A (Special design Vibro Coloured Pavers & Bricks)
Maximum High Pressure Tonnage
(Vibro + Hydraulic Pressure)
10 to 12 MT (415 Volts high pressure with advance hydraulic sytem for super strength of flyash/concrete brick blocks)
Power Required 25 HP
Manufacturing Capacity Fly Ash Bricks: 12 pcs in one operation
Facility Materials Automatically Double Feeder Facilitates for production of Fly Ash Bricks & Blocks
Discharge of Material Discharge of finish product Through Bering Conveyor for Faster Production
Pallet Feeder Pallet Feeder back side of machine
Production in shift of 8 hours Fly Ash Bricks & Blocks
Brick Size 230 x 110 x 75mm 20000-24000 Pcs
230 x 150 x 75mm 18000 Pcs
400 x 200 x 200mm 5000 Pcs
Concrete Paver Blocks Double Layer Approx 6000 Pcs (as per Design)
Oil Tank Capacity 400 Litres (68 No. Hydraulic Oil) Press Machine
Conveyor Belt 20 Feet x 18 inch, 2HP
Pan Mixer Machine Heavy Roller & Blades, 600kg Mixing Capacity, 10 HP Motor & Heavy Gear Box
Double Cone Type Colour Mixer 3 HP, 3 Phase Electric Motor

Note: Electric fork lift available if required (for easy shift green bricks one to another place)

Enquire Now

Horse power for 6 blocks/stroke:

Hydraulic 12.5 HP
Vibrator 1.5 HP (2 no's)
Taper conveyor 2 HP
300 Kg Pan Mixer 12.5 HP
Total Power 30 HP

Horse Power for 10 blocks/stroke:

Hydraulic 15 HP
Vibrator 2 HP - 2 No's
Taper conveyor 2 HP
Mixer machine 12.5 HP
Total 33.5 HP
