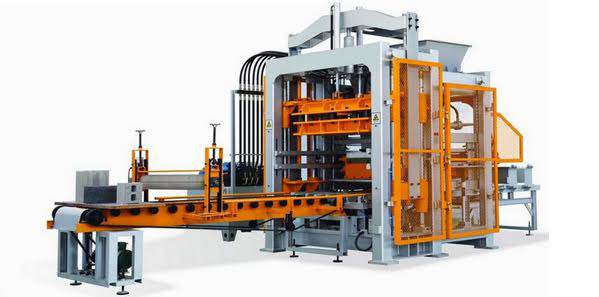

Model no. pnb 015 a

Roll over image to zoom in

Technical Specification

Model PNB-015A (Special design for Hollow Bricks)
Maximum High Pressure Tonnage
(Vibro + Hydraulic Pressure)
10 to 12 MT (415 Volts high pressure with advance hydraulic sytem for super strength of flyash/concrete brick blocks)
Power Required 33 HP
Manufacturing Capacity Hollow Bricks: 4/6/8 pcs (Acc. to size) in one operation
Facility Materials Automatically Double Feeder Facilitates for production of Hollow & Paver Blocks
Discharge of Material Discharge of finish product Through Bering Conveyor for Faster Production
Pallet Feeder Pallet Feeder back side of machine
Production in shift of 8 hours Hollow & Paver Blocks
Brick Size 400 x 200 x 200mm 6500 Pcs
400 x 200 x 150mm 8000 Pcs
400 x 200 x 100mm 25000 Pcs
Bricks: 28000 to 30000
Concrete Paver Blocks Double Layer Approx 9000 Pcs (as per Design)
Oil Tank Capacity 400 Litres (68 No. Hydraulic Oil)
Conveyor Belt 20 Feet x 18 inch, 2HP
Pan Mixer Machine Heavy Roller & Blades, 600kg Mixing Capacity, 10 HP Motor & Heavy Gear Box
Double Cone Type Colour Mixer 3 HP, 3 Phase Electric Motor

Note: Electric fork lift available if required (for easy shift green bricks one to another place)
